Vertechs Quick
Connector-Wellhead
Penetrator System

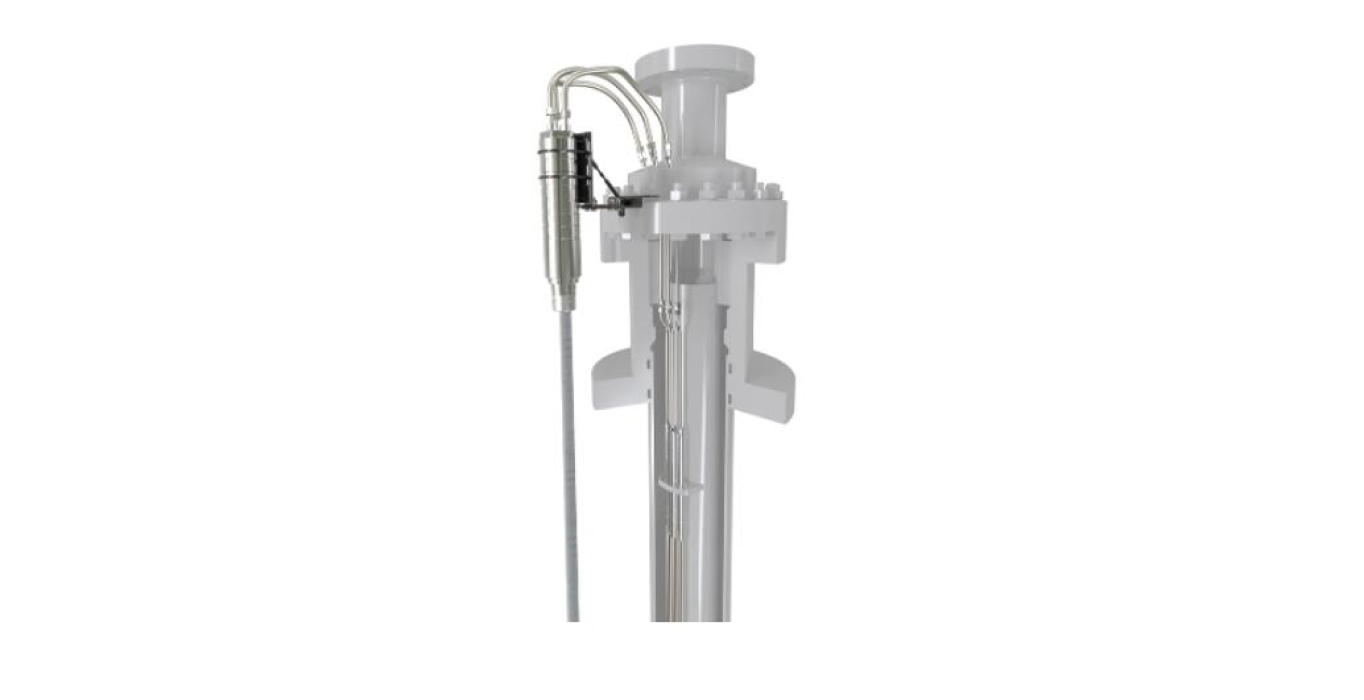

Vertechs Quick Connector (VQC) - Wellhead Penetrator System is a three-legged ESP cable connector system. It is designed to provide the simplest and quickest cable connection without splicing, which significantly saves installation time and cost. A unique self-locking device ensures easy and successful electrical connections. The VQC is also suitable for smaller annular clearance applications. It consists of a surface junction box and downhole connectors. An extremely simple design and quick connection at a competitive price makes it an excellent solution for ESP wellhead penetration.

Specification

Pressure Rating

7,500psi

Voltage Rating

5000V (AC)

Current Rating

125A

Temperature Rating

302℉/1 50℃
