iRCD Pro

Vertechs iRCD Pro is an all-electric integrated wellhead pressure control system built on intelligent RCD technology. It integrates RCD and MPD manifold functions into a single compact unit, enabling conventional rigs to perform MPD operations with remote support powered by IoT connectivity. The system reduces equipment footprint by 60% – 75%, lowers weight by over 50%, shortens installation and maintenance time, and minimizes crew requirements, enhancing both efficiency and safety.

Features
Specification

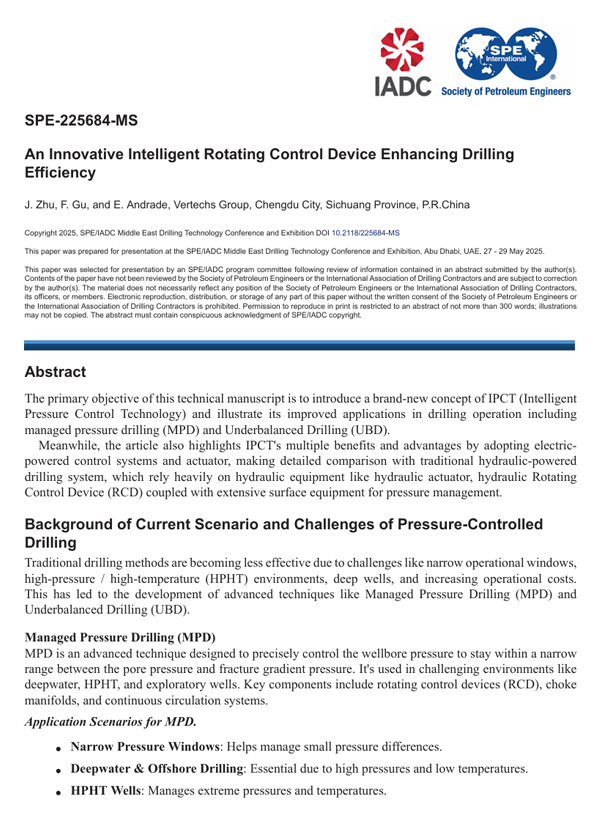

Technical Publictaion
Download

Features

Enable transition from SBP to WBP
Integrate core functions of iRCD and IPC-MPD systems in a compact system (≤4 m²) with ±15 psi pressure control accuracy
Reduce deployment time by 60%, crew by 50%
Applicable to land rigs, modular rigs, and jack-up rigs

Specification

iRCD Pro SPECIFICATIONS
API Standard	API 16RCD, 16C, 16A	Actuator	Electric (Low-voltage DC, Explosion-proof, Non-decoupled)
Max. Static Pressure	5,000 psi	RCD	iRCD Spec.
Bypass Line	3 – 4 (Customized)	Bypass Connection	4 ¹/₁₆ in
Valves	5 – 7 (Customized)	Orifice Size	2 in / 3 in
Foot Print	＜4m²	Precision	±15 psi
Packing Elements	Single / Dual	Cooling	Self-lubricating

iRCD SPECIFICATIONS
API Standard	API 16RCD	Actuator	Electric (Low-voltage DC, Explosion-proof, Non-decoupled)
Max. Static Pressure	5,000 psi	Max. Dynamic Pressure	2,500 psi
Bearing Assembly	8 ¹/₄ in	Bottom Flange	13 ⁵/₈ in
Hosing Max. Outlet	7 ¹/₁₆ in	RPM	0 – 200 rpm
Hosing Height	46 – 53 in	Weight	1.5 – 3 T
Packing Elements	Single / Dual	Cooling	Self-lubricating

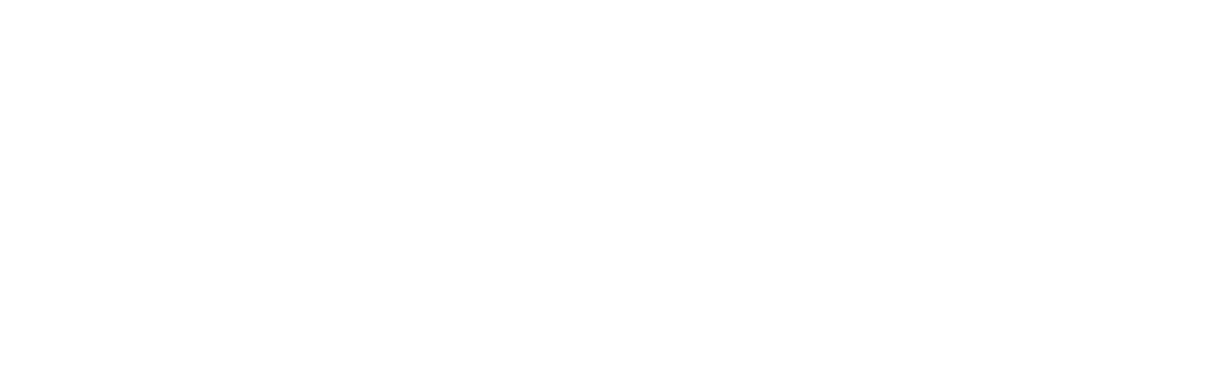

IPC-MPD SPECIFICATIONS
API Standard	API 16C	Actuator	Electric (Low-voltage DC, Explosion-proof)
Working Pressure	5,000 psi	Precision	±15 psi
Bypass Connection	4 ¹/₁₆ in	Orifice Size	3 in / 2 in
