Composite vs. Dissolvable Plugs: Which is Right for Your Well?

In today’s unconventional resource development, composite and dissolvable frac plugs are the two mainstream solutions for multistage horizontal well fracturing. While composite plugs have served the industry for years, Dissolvable technology is setting the NEW standard for modern completion efficiency by eliminating intervention entirely. Choosing the right tool is critical for maximizing completion efficiency.

The Proven Foundation: Composite Plugs

Engineered for reliability in the most demanding environments

• High Milling Efficiency: constructed from high-strength fiberglass, carbon fiber, or specialized alloys designed for easy milling and efficient flow-back.

• Superior Stability: dual-slip anchoring and high-performance sealing elements ensure stable pressure resistance.

• HPHT Capability: rated for extreme conditions up to 204°C (400°F) and pressures of 70–105 MPa (10,000–15,000 psi).

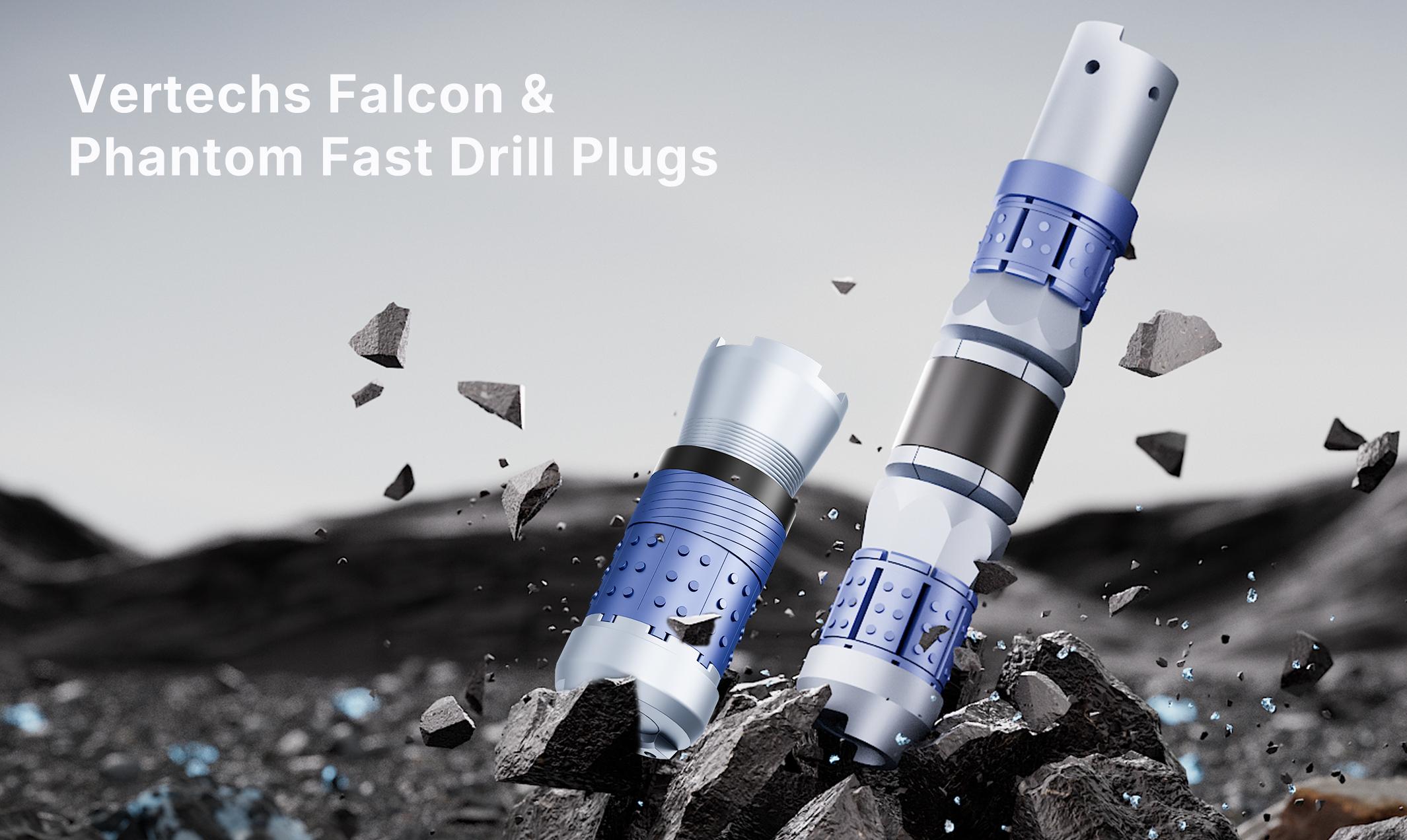

Vertechs Solution: The Falcon & Phantom Fast Drill Plugs offer predictable, high milling efficiency, stable HPHT performance, and compatibility with high API casing grades.

The Efficient & Cost-Effective Evolution: Dissolvable Plugs

Eliminate the need for intervention, saving time, reducing costs and mitigating operational risks

• Predictable Degradation: made of magnesium alloys or polymers designed for controlled downhole dissolution.

• Superior Passability: a shorter, slimmer design improves passability, especially in long horizontal sections or in deformed casing.

• Intervention-Free: self-dissolution eliminates milling costs, allowing for earlier production.

• Sustainability: supports UN Sustainable Development Goals (SDGs) by reducing the operational footprint.

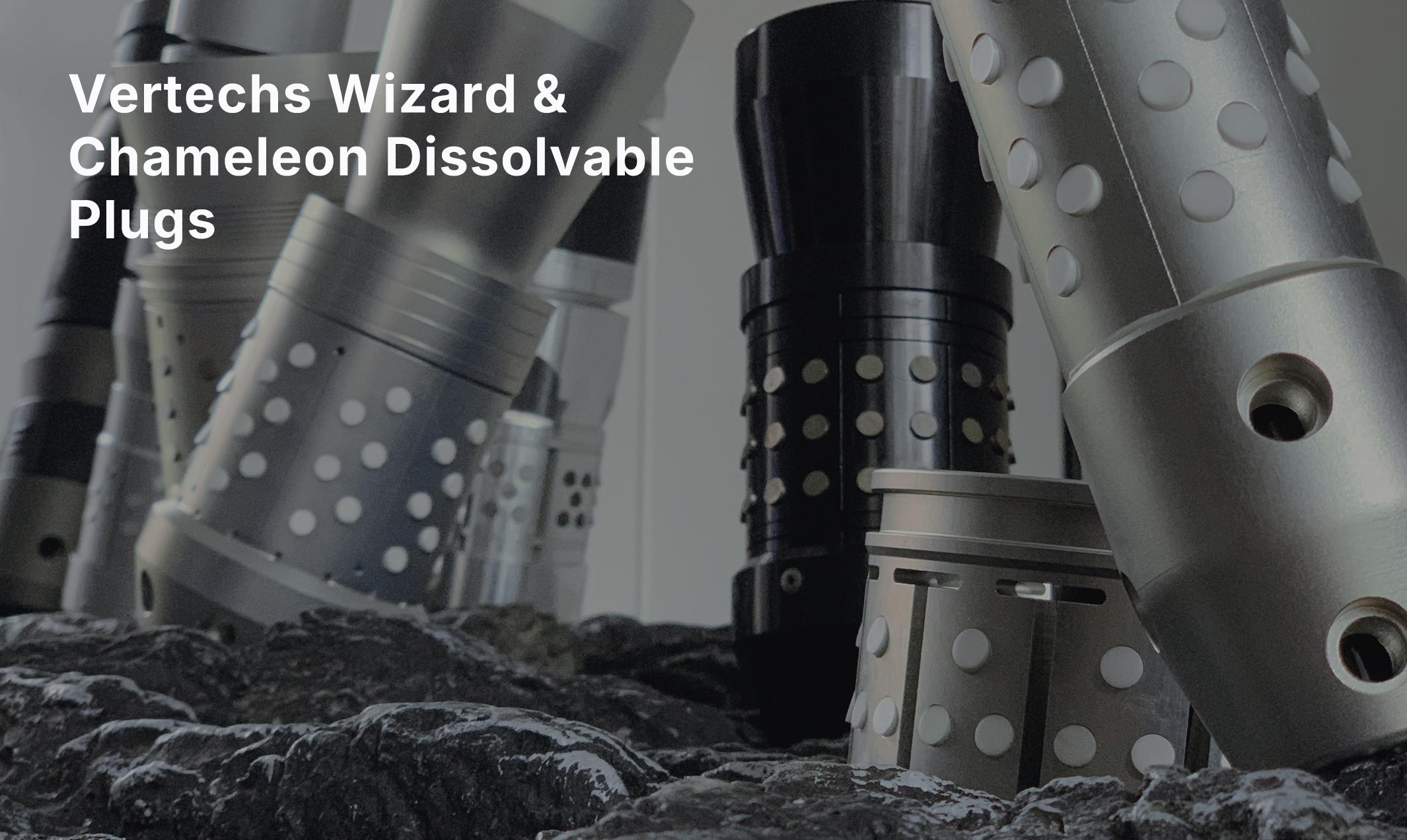

Vertechs Solution: The Wizard & Chameleon Dissolvable Plugs feature a proprietary field-proven coating to prevent early dissolution and an anti-preset design for secure pumping.

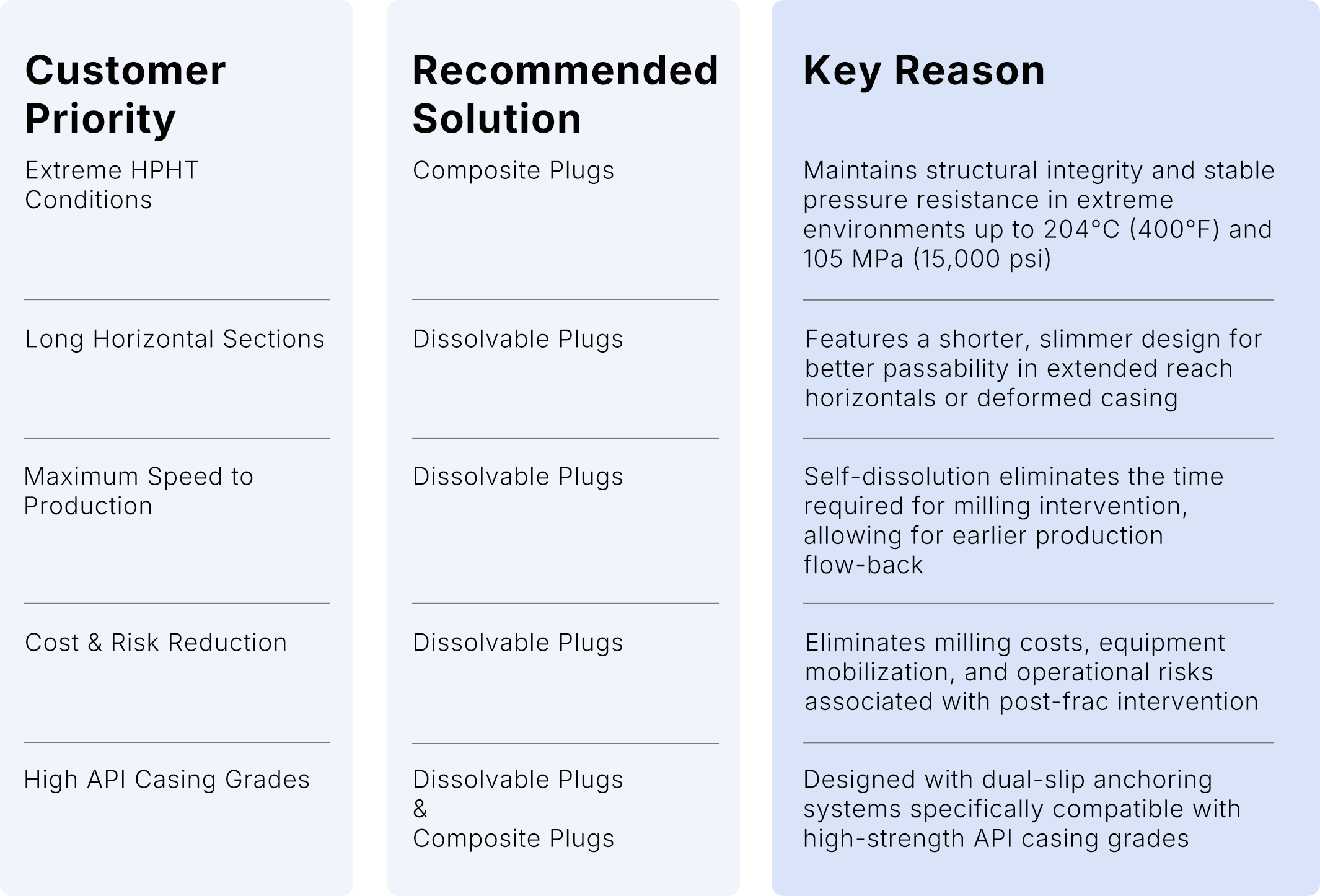

Quick Decision Matrix:  Which One is Right for You?

Ready to optimize your completion strategy? Whether you need the reliability of a composite plug or the cost-saving efficiency of a dissolvable solution, our experts are here to help you make the optimal choice.
