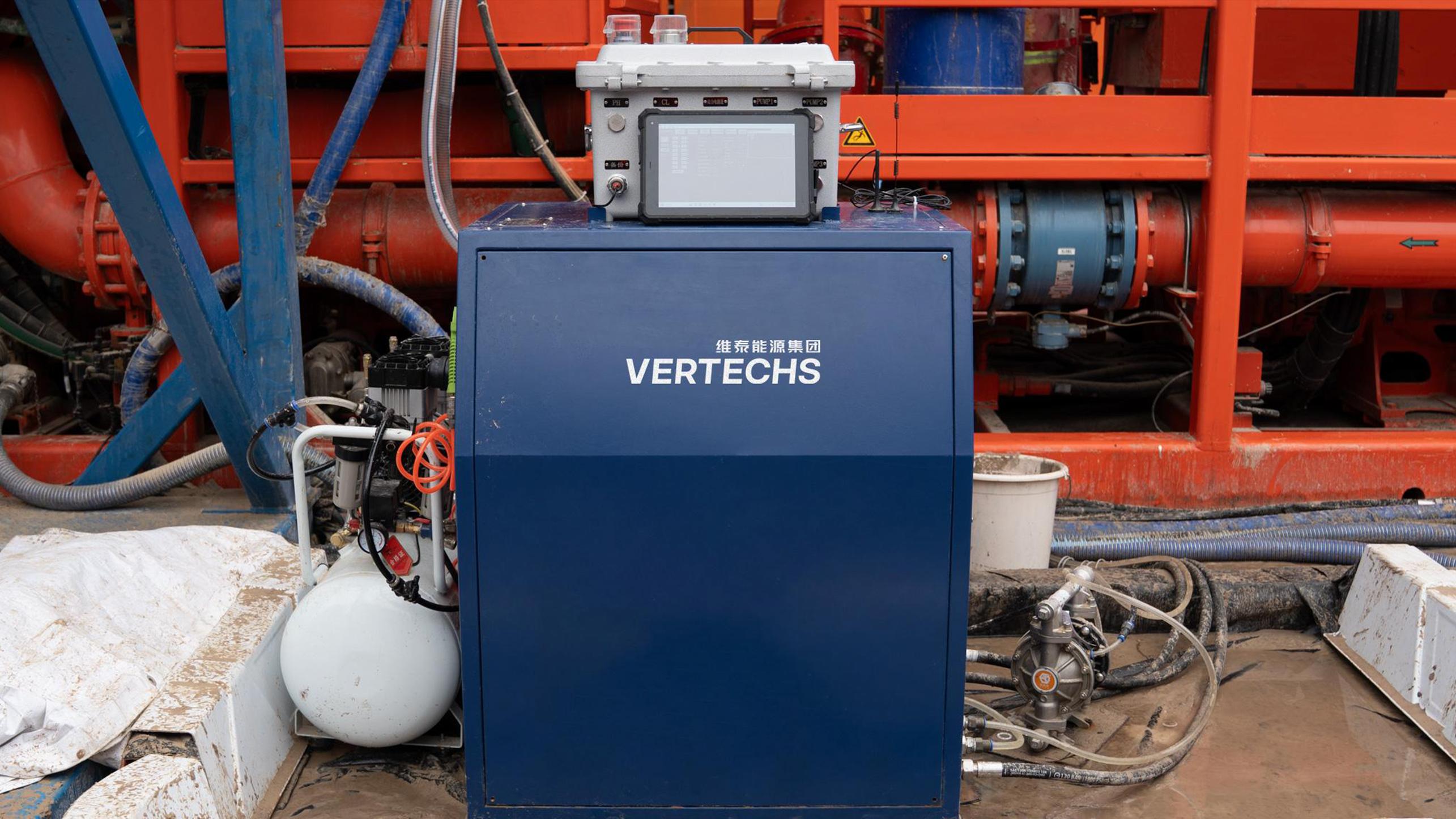

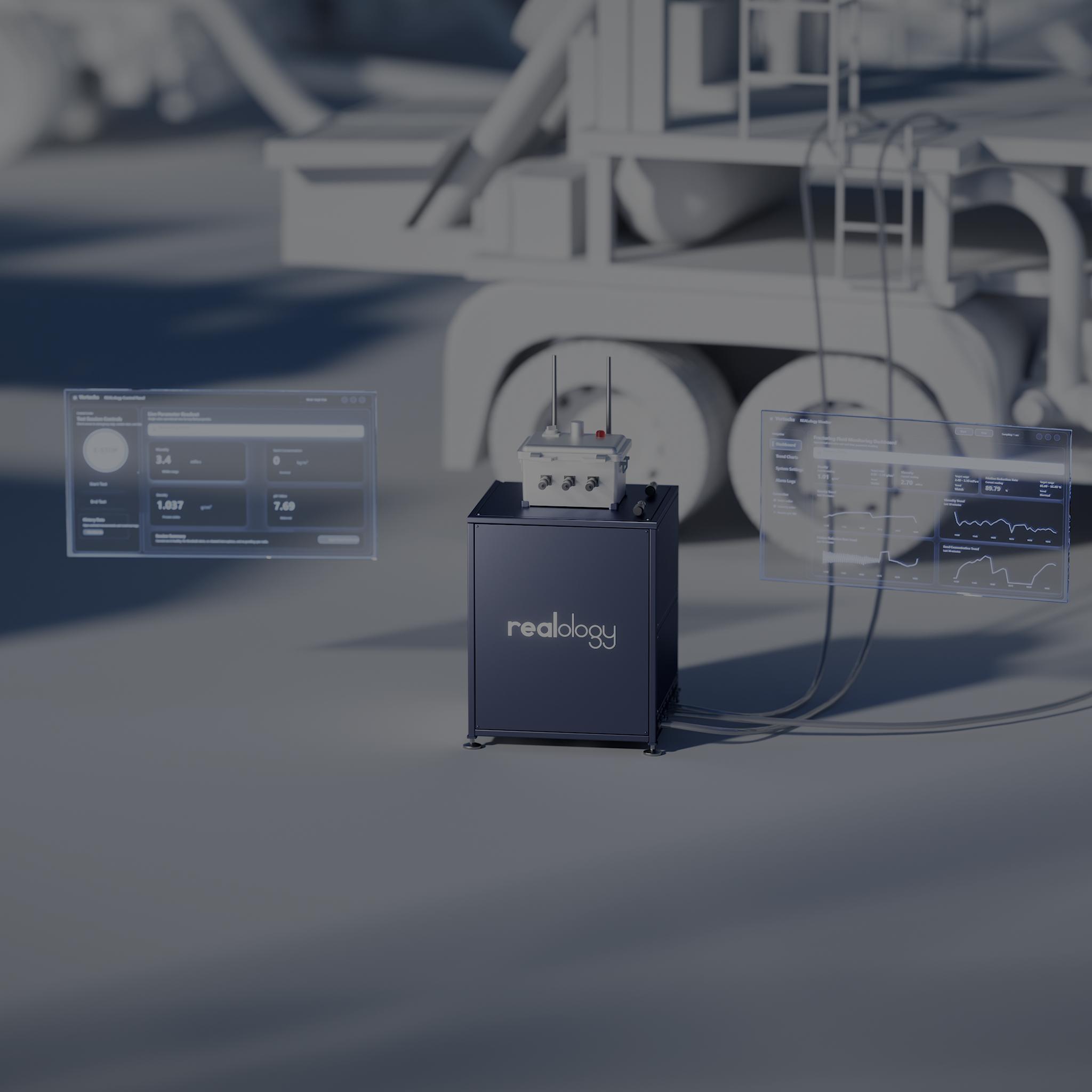

REALology Intelligent Frac Fluids Monitoring System offers accurate and continuous on-site measurements of key parameters such as viscosity, friction reduction, pH and sand concentration. Its robust, compact and modular design provides tailored solutions, enabling operators to optimize fluid performance, improve frac operational efficiency, and enhance informed decision-making.
Features
-
Real-time monitoring of critical frac fluids parameters
-
Modular compact design for quick setup and easy maintenance
-
Flexible and customizable design for tailored solutions
Specification
| Parameter | Measurement Accuracy | Parameter Update Frequency | Dimensions (W * D * H) | Weight |
| Viscosity | ±0.5 mpa.s | Real-time | 1m * 1.5m * 1.5m | 242 lbs |
| pH | ±0.5 | |||
| Sand Concentration | ±3% | |||
| Friction Reduction Rate | ±5% |
