IPC Titan - Smart Choke Retrofit

IPC Titan represents an electrically powered actuator engineered to upgrade manual chokes to an electrically powered ones without sacrificing the pressure-tested integrity of the choke manifold.

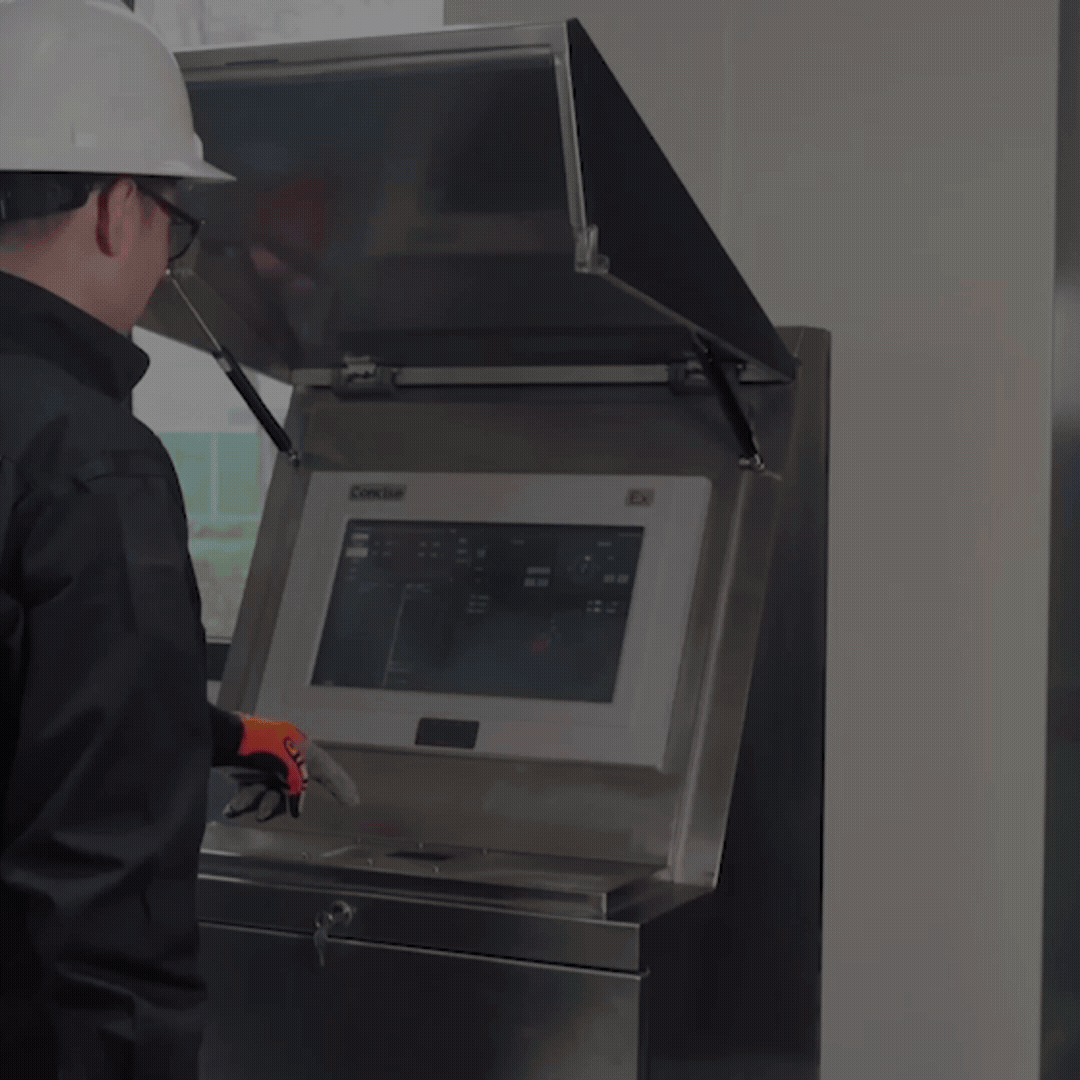

IPC Titan distinguishes itself not merely through its electrical actuation but also via the integration of remote operation capabilities and control software. This technological advancement permits personnel to manage choke operations from a secured distance, reducing exposure to high-pressure hazards.

Fundamentally, IPC Titan synthesizes electric power actuators with control algorithms and remote control capability, streamlining well-killing procedures while significantly enhance safety. It's a revolutionary step forward in enhancing both efficiency and safety in well control during drilling operations.

Features

· Convert manual choke into electric choke
· Supported with automation software
· Modernize and automate well-killing operations
· Safe operating distance and remote capabilities

Specification

Working Pressure

10,000 - 20,000 psi

Inlet & Outlet

4 1/16 in

Choke Actuator

Electric

API Standard

API 16C

Choke Size

2 in or 3 in

Precision

±30 psi

Download

Request Quotation

After submitting the information, our engineers will contact you as soon as possible
Submit
